AJA FS1-X Frame Synchronizer & Converter with MADI Audio
FS1-X is the next evolution in frame synchronization and conversion. Within its compact 1RU chassis, FS1-X integrates an amazing array of video and audio connectivity and processing, including 56- and 64-channel MADI audio over coax or fiber. With its flexible architecture, FS1-X utilizes a high-quality, motion adaptive linear Frame Rate Converter for smooth motion conversion between a wide range of frame rates whether for broadcast, production or live events.
Incredible frame rate conversion option*
Matching up and synchronizing disparate video and audio formats is a critical part of any broadcast, mobile or postproduction environment. Within its compact 1RU chassis, FS1-X integrates an amazing array of video and audio connectivity and processing. Featuring a flexible architecture, FS1-X simultaneously works with 3G-SDI 10-bit broadcast quality video and incorporates embedded audio, AES, MADI, and analog audio.
Utilizing AJA’s remarkable conversion algorithms, FS1-X supports up, down and cross-conversion between SD and HD signals for the highest quality output possible. Additionally, the factory installed motion adaptive Frame Rate Converter (FRC) option enables high quality conversions between different frame rate families for virtually unlimited international standards support.
*Optional. Factory installation required at time of order.
Massive audio flexibility
The growth of 5.1 and 7.1 audio has increased the number of audio channels that must be managed in a production. The MADI standard provides a convenient way to transport huge numbers of audio channels along a single cable, simplifying the cabling demands for broadcasters, mobile trucks, and production.

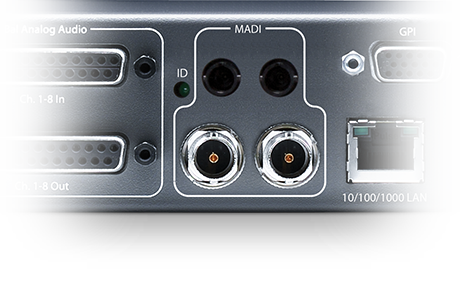

FS1-X supports both fiber and coax 64-Channel MADI input and output. An internal 224 x 224 audio matrix allows full routing of MADI and all audio coming from SDI, fiber, AES and analog sources for an incredible amount of audio processing capability in a single box.
AJA’s hardware conversion technology ensures the highest image quality for your productions.
Key conversion features include:
- SD/HD up, down-conversion
- SD/SD aspect ratio conversion
- HD/HD cross-conversion (720p/1080i)
- Up, down, cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
- HD cross-conversion with simultaneous down-converted SDI output
- Automatic Reverse Telecine detection and removal
- Closed Caption conversion (CEA-608/CEA-708 standards)
- AFD conversion or pass-through (user-selectable)
FS1-X features a unique keyer configuration, allowing incoming signals to be combined in powerful ways. A common example is sidebar keying, where incoming video is converted from SD to HD but rather than stretching the 4:3 aspect ratio to fit in a 16:9 frame, a second signal is used to fill the sides of the 16:9 frame. This allows channel identification or other imagery to be placed in that area rather than having black bars on either side. The robust AFD features of FS1-X ensure that the aspect ratio of the outgoing signal is properly identified for downstream devices.
Many functions on FS1-X can be triggered by external GPI’s such as freezing an input or switching between presets, allowing easy integration into existing systems for seamless and accurate automation.
FS1-X is loaded with comprehensive I/O for converting between the widest range of analog and digital signals. Perfect for use in all broadcast and post production environments, featuring 3G-SDI inputs and outputs, HDMI, comprehensive multi-channel audio connections supporting the latest standards, and I/O for analog video equipment, including HD and SD component.
CWDM Fiber Options

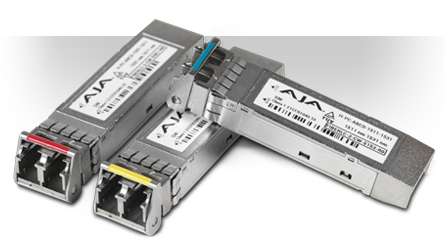

The optional fiber inputs and outputs let you to choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.
Possible CWDM options:
- Dual TX 1271/1291
- Dual TX 1311/1331
- Dual TX 1351/1371
- Dual TX 1391/1411
- Dual TX 1431/1451
- Dual TX 1471/1491
- Dual TX 1511/1531
- Dual TX 1551/1571
- Dual TX 1591/1611
Remote configuration and control

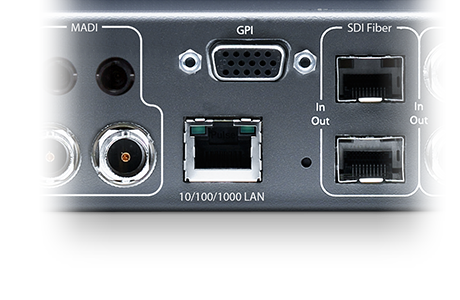

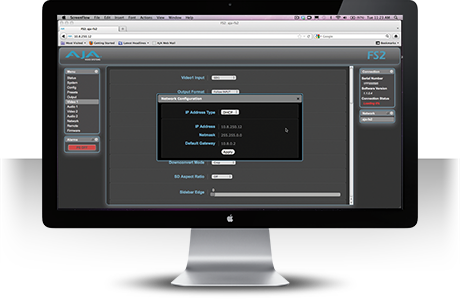

FS units are network ready and support SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000 Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.
FS1-X is designed to maximize flexibility while providing a dependable solution that is engineered to meet the demands of broadcast engineering. Dual, redundant power supplies ensure FS1-X remains online even in the event of a power supply failure.
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your FS installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
FS products are covered by a generous five year international warranty.
